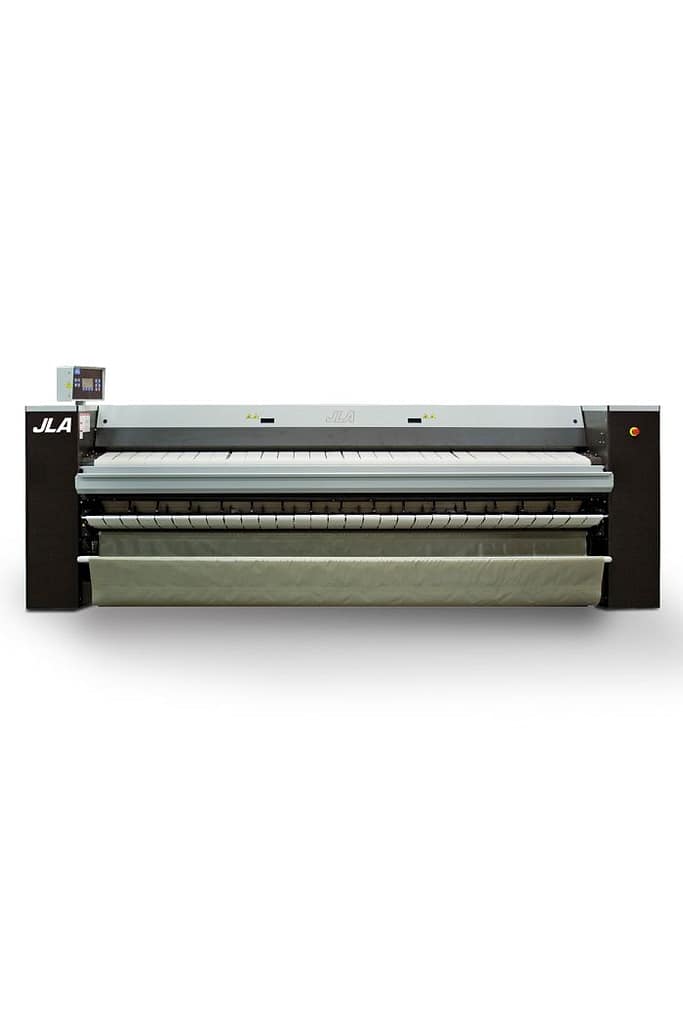

JLA 1.9 Commercial Iron
Process and finish up to 30 items of flatwork per hour with the JLA 1.9 steam dryer ironer, which features a full-length operator pedal and return feed for maximum efficiency and minimal effort. An optional integrated folding system is also available.
Specifications
1.9 Iron
1.9 Iron
| Dimensions (mm): 1630x2837x1173 | Roller (mm Ø): 510 |
| Electric Heat (kW): 37.73 | Speed (mtr/min): 1-9 |
| Capacity (Water Evaporation) (ltr/hr): 30 | Roller Length (Working Width) (mm): 1900 |
| Weight (G+E (steam) – net) (Kg): 1035 (1145) | Exhaust Outlet (mm Ø): 130 |
| Gas Connection (“BSP): 3/4 | Voltage Gas/Steam (Volt/ph/Amp): 230/1/10 |
| Voltage Electric (Volt/ph/Amp): 400/3/63 | Total Electric Power (kW): 38.58 |
| Gas Heat kW (Btu/hr): 44.3 (151/192) | Steam Heat kW (Btu/hr): 48.8 (166/513) |
| Steam Connection (mm Ø): 25.4 | Condensate Outlet (mm Ø): 19 |
| Safety Valve Discharge (mm Ø): 12.7 | Integrated Folder: Available |
