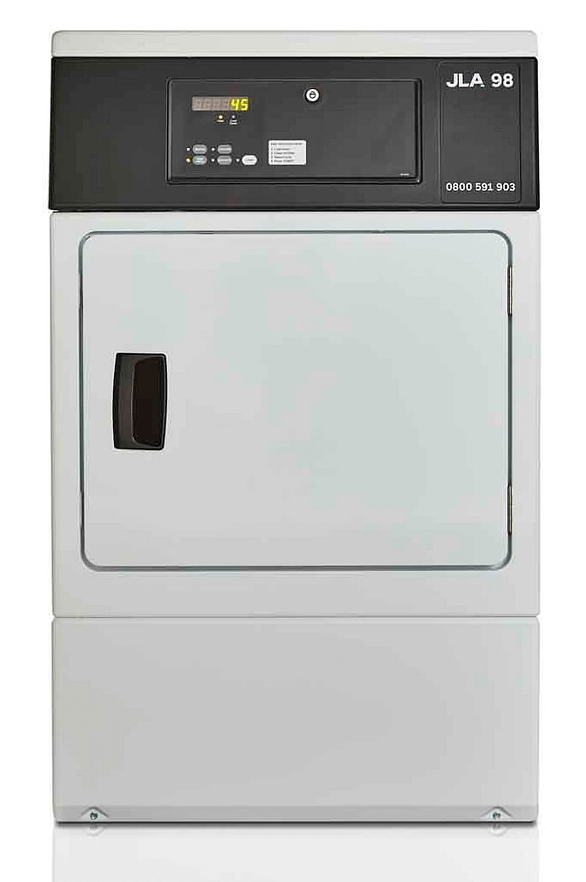

JLA 98 Tumble Dryer (9kg)
The JLA 98 tumble dryer exemplifies both elegance and reliability, showcasing the skill of the leading laundry provider in Ireland. It offers four customisable temperature settings to meet diverse drying requirements. The spacious door allows for easy loading and unloading by staff, and it can be stacked with other JLA dryers to enhance space utilisation.
Engineered for peak performance, the JLA 98 prioritizes energy efficiency while remaining user-friendly.
Specifications
JLA 98 Dryer
JLA 98 Washer/Dryer Stack
JLA 98 Dryer/Dryer Stack
JLA 98 Dryer
| Capacity (kg) | 9.5 |
| Height (mm) | 1121 |
| Width (mm) | 683 |
| Depth (mm) | 711 |
| Net weight (kg) | 68 |
| Drum volume (litres) | 201 |
| G Force | – |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | – |
| Water Connection Size (“BSP) | – |
| Exhaust Diameter (mm/in) | 102/4” |
| Make-Up Air (m2/in2) | 0.013/20 |
| Airflow (m3/min – ft3/min) | 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | – |
| Drain Valve (mm/in) | – |
| Gas Rating (kW/BTU) | 5.9/20,000 |
| Gas Connection Size (“BSP) | 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | – |
| Self Heat Washer (Volt/ph/Amp) | – |
| Electric Heat Dryer (Volt/ph/Amp) | 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | – |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | 400/3/10 |
JLA 98 Washer/Dryer Stack
| Capacity (kg) | 9.5/9.5 |
| Height (mm) | 1994 |
| Width (mm) | 683 |
| Depth (mm) | 744 |
| Net weight (kg) | 177 |
| Drum volume (litres) | 97/201 |
| G Force | 440 |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | 1/1 |
| Water Connection Size (“BSP) | 3/4 |
| Exhaust Diameter (mm/in) | 102/4” |
| Make-Up Air (m2/in2) | 0.013/20 |
| Airflow (m3/min – ft3/min) | 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | 50mm/2” |
| Drain Valve (mm/in) | 50mm/2” |
| Gas Rating (kW/BTU) | 5.9/20,000 |
| Gas Connection Size (“BSP) | 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | 230/1/10 |
| Self Heat Washer (Volt/ph/Amp) | 230/1/25 |
| Electric Heat Dryer (Volt/ph/Amp) | 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | 230/1/13 |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | – |
JLA 98 Dryer/Dryer Stack
| Capacity (kg) | 9.5 |
| Height (mm) | 1994 |
| Width (mm) | 683 |
| Depth (mm) | 711 |
| Net weight (kg) | 125 |
| Drum volume (litres) | 201/201 |
| G Force | – |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | – |
| Water Connection Size (“BSP) | – |
| Exhaust Diameter (mm/in) | 2 x 102/4” |
| Make-Up Air (m2/in2) | 0.026/40 |
| Airflow (m3/min – ft3/min) | 2x 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | – |
| Drain Valve (mm/in) | – |
| Gas Rating (kW/BTU) | 2 x 5.9/20,000 |
| Gas Connection Size (“BSP) | 2 x 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | – |
| Self Heat Washer (Volt/ph/Amp) | – |
| Electric Heat Dryer (Volt/ph/Amp) | 2 x 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 2 x 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | – |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | 400/3/10 |
