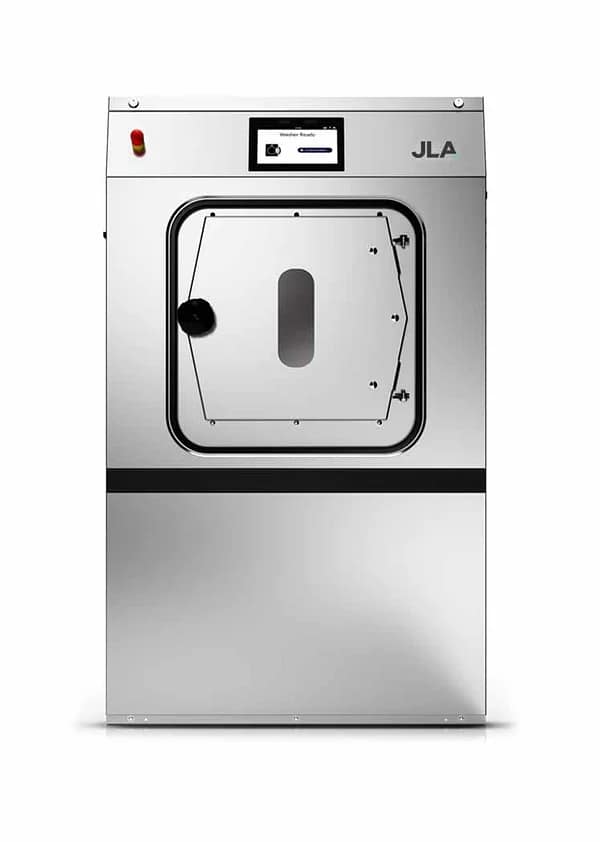

JLA Small Barrier Washing Machines (18kg – 28kg)
The JLA Small Barrier heavy-duty washing machines are tailored for large items needing robust laundering. Their high spin speeds and G-Force technology significantly cut down drying times. The perforated lifting rubs enhance mechanical action, leading to lower water usage. Additionally, the design allows for straightforward access to all components, making cleaning and maintenance effortless.
Specifications
JLA 175
JLA 220
JLA 175
| Capacity kg/lb | 80/176 |
| Height mm | 1985 |
| Width mm | 1495 |
| Depth mm | 1940 |
| Net Weight kg | 2640 |
| Tilting option Height mm |
2120 (max 2434 when tilted) |
| Width mm | 1620 |
| Depth mm | 1995 (max 2292 when tilted) |
| Net Weight kg | 2800 |
| Drum Volume l/m3 | 807/0.807 |
| G Force | 350 |
| Door Opening diameter mm | 530 |
| Electrical Steam Heat V/ph/A |
400V/3ph+N/32A |
| Water Connections Cold/Hot | 2/1 |
| Water conn size “BSP | 1.5” |
| Drain conn diameter “BSP/mm | (2x) 4”/103mm |
| Steam conn size “BSP | 1” |
| Compressed Air conn size “BSP | 1/4” |
JLA 220
| Capacity kg/lb | 100/220 |
| Height mm | 2060 |
| Width mm | 1790 |
| Depth mm | 2005 |
| Net Weight kg | 3170 |
| Tilting option Height mm |
2195 (max 2518 when tilted) |
| Width mm | 1920 |
| Depth mm | 2060 (max 2365 when tilted) |
| Net Weight kg | 3360 |
| Drum Volume l/m3 | 1003/1.003 |
| G Force | 350 |
| Door Opening diameter mm | 530 |
| Electrical Steam Heat V/ph/A |
400V/3ph+N/50A |
| Water Connections Cold/Hot | 2/1 |
| Water conn size “BSP | 1.5” |
| Drain conn diameter “BSP/mm | (2x) 4”/103mm |
| Steam conn size “BSP | 1” |
| Compressed Air conn size “BSP | 1/4” |
